When you are ordering high-end packaging for your brand, nothing is more frustrating than receiving thousands of units that are just a few millimeters too small or awkwardly large. At Huzhou Aopa Industry Co., Ltd, with 18 years of manufacturing custom rigid boxes for global brands, we have seen firsthand how precise measurements make or break a packaging project. For luxury products, the fit isn’t just about protection; it is about the “unboxing experience.” A
If you are wondering how to measure for custom rigid box dimensions correctly, this guide will walk you through the industry standards, technical nuances, and expert tips to ensure your lid and base boxes or premium folding magnetic boxes fit your products like a glove.
Why is accurate measurement critical for rigid boxes?
In the world of custom packaging, “standard sizes” rarely exist. Rigid boxes (also known as set-up boxes) are made from thick paperboard (usually 1.5mm to 3mm thick) wrapped in decorative paper. Unlike corrugated mailers, they do not have much “give.” If your measurements are off by even 2mm, the lid might not close properly, or the internal insert might rattle.
Accurate measurements impact:
- Shipping Costs: Oversized boxes increase dimensional weight (DIM weight) and shipping fees.
- Product Safety: A loose fit can cause damage during transit.
- Aesthetics: A box that is too tall or too wide looks unprofessional.
- Insert Integrity: If you use EVA foam or cardboard inserts, they rely on the box’s internal dimensions to stay in place.
What is the standard order of dimensions?
The packaging industry follows a universal sequence when stating box dimensions: Length (L) x Width (W) x Height/Depth (D/H).
* Length: The longest side of the box opening.
* Width: The shorter side of the box opening.
* Depth (or Height): The distance from the top of the opening to the bottom of the box.
When communicating with a manufacturer like Aopa Packaging, always specify that you are using this order to avoid any orientation confusion.
How to measure the product itself?
Before you measure the box, you must measure the item going inside.
- Place the item on a flat surface. If you are packaging multiple items, arrange them exactly as you want them to appear in the box.
- Measure the “Footprint”: Measure the maximum length and width of the arrangement.
- Measure the “Profile”: Measure the tallest point of the item.
- Consider the Buffer: Never use the exact dimensions of the product for the box. You need a “clearance” or “tolerance” (usually 3mm to 5mm) to allow the customer to easily remove the item.
Should you provide inner or outer dimensions?
This is the most common point of failure in B2B packaging procurement.
Always specify Internal Dimensions (ID).
Why? Because rigid boxes use thick chipboard. A box with an outer dimension of 200mm might only have an internal space of 194mm once you account for the thickness of the board and the wrapping paper. If you provide “Outer Dimensions” (OD) to your supplier, your product might not fit inside.
When you request a quote from Aopa Packaging, clearly state: *”These are the internal dimensions required for my product.”*
How to measure for custom rigid box types?
Different box structures require slightly different considerations.

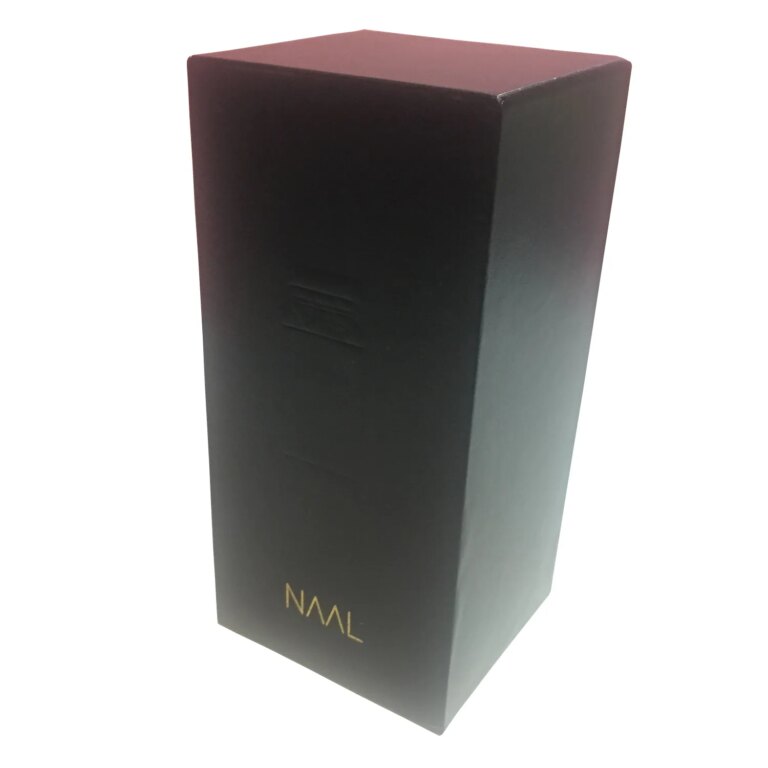

Lid and Base Boxes (Telescope Boxes)
For a lid and base box, you need to measure the base. The manufacturer will automatically calculate the lid size to ensure it slides on with the right amount of friction (the “slow-release” effect). You should also decide if you want a “Full Telescope” (lid covers the whole base) or a “Partial Telescope” (the base is visible at the bottom).
Premium Folding Magnetic Boxes
Measuring for premium folding magnetic boxes involves measuring the inner tray. Since these boxes ship flat and “snap” into shape, the internal depth is particularly important to ensure the magnets align correctly when the flap closes.
How to account for internal inserts?
If your luxury rigid box includes an insert (foam, plastic tray, or cardstock), the measurement process changes:
- The Insert is the Bridge: The box dimensions are determined by the size of the insert, and the insert dimensions are determined by the product.
- Foam Compression: If using EVA foam, the foam itself has a thickness. If the foam is 20mm thick, your box depth should be at least 20mm.
- Finger Notches: If the product is flush with the insert, you may need to add “finger notches” to the design. This doesn’t change the box size but affects the internal layout.
What tools should you use for the most accurate results?
Skip the soft sewing tape measure. For B2B quality control, use:
* Digital Calipers: Essential for small items like jewelry or electronics to get sub-millimeter accuracy.
* Steel Ruler: Better than plastic as it doesn’t warp or bend, providing a true straight edge.
* A Prototype: Before mass production, always ask Aopa Packaging for a white sample (unprinted prototype) to test the fit physically.
Common pitfalls to avoid when measuring
* Ignoring the wrapping paper: Some textured papers or “soft-touch” laminations add a tiny bit of thickness.
* Measuring from the outside: We cannot stress this enough—measure the space inside!
* Rounding down: If your product is 10.2cm, do not round down to 10cm. Round up and add your buffer.
* Forgetting the manual: If your product comes with a user manual or a “thank you” card, ensure there is space on top of the product for these items.
How can Aopa Packaging help with your dimensions?
Further Reading: ISO 9001 Quality Management — packaging measurement standards
Key Takeaways about how to measure for custom rigid box: Understanding how to measure for custom rigid box is essential for making informed B2B packaging decisions. Whether you are evaluating how to measure for custom rigid box options for the first time or optimizing your current how to measure for custom rigid box strategy, the right choice impacts your brand perception, cost structure, and market access.
With over 18 years of experience, Huzhou Aopa Industry Co., Ltd. understands that precision is the foundation of luxury packaging. If you are unsure about how to measure for custom rigid box requirements, our engineering team can provide a “Dieline” based on your product samples.
Whether you need a book-shaped box for a premium gift set or a simple drawer box for jewelry, we ensure the structural integrity matches your brand’s vision.
Ready to start your custom project?
Contact Huzhou Aopa Packaging today to get a custom dieline and quote for your next rigid box project. 18 years of factory expertise, FSC certified, MOQ from 100 pcs. Let us help you find the perfect dimensions for your brand.
Frequently Asked Questions
How do I measure my product for a custom rigid box?
Measure the product’s length, width, and height in millimeters. Add 2–3mm tolerance per dimension for comfortable insertion. For how to measure for custom rigid box, always specify internal dimensions (the space the product occupies), not external box size.
Should I measure internal or external dimensions for a custom rigid box?
Always measure internal dimensions when learning how to measure for custom rigid box. External dimensions include greyboard thickness (1.5–3mm per wall) and wrapping paper. Specifying internal dimensions ensures your product fits correctly.
What tolerance should I add when measuring for a custom rigid box?
Add 2–3mm per dimension (length, width, height) as insertion tolerance. For fragile items, add 4–5mm to accommodate cushioning. When considering how to measure for custom rigid box, also account for product orientation and any inserts. Explore our lid and base gift boxes for your next project.
